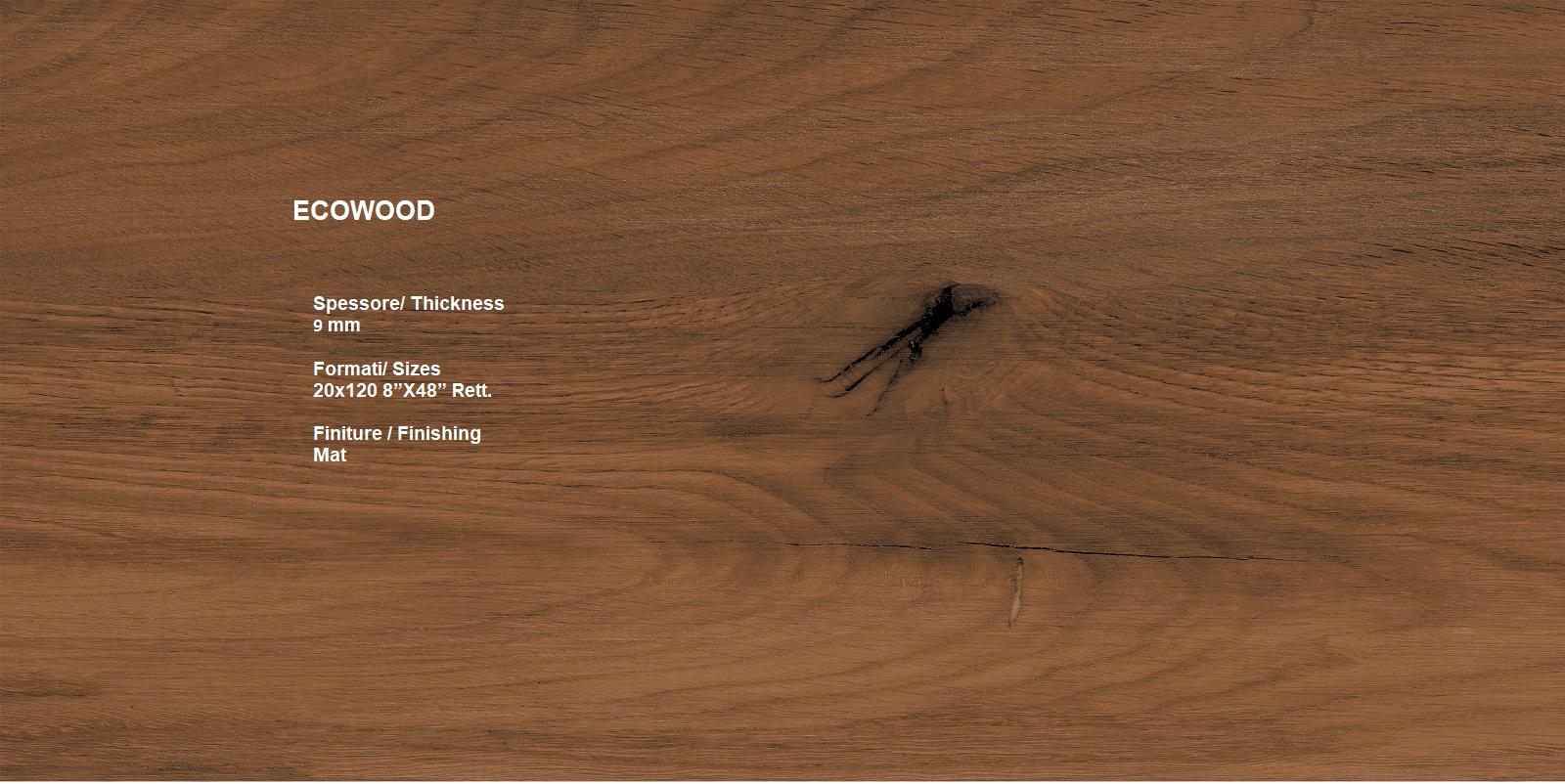

20×120 cm – 9mm – Mat
|
INFORMAZIONI TECNICHE |
NORME ISO | VALORE PRESCRITTO DALLE NORME | VALORI CANDIA |
| TECHNICAL FEATURES | ISO NORM | INTERNATIONAL STD 15622/2013 GROUP B 1 a | VALUES CANDIA |
| DIMENSION & SURFACE QUALITY | |||
| Deviation in length & width | IS-13630-1 | 0.1% | +/- 0.1% |
| Deviation in thickness | IS-13630-1 | 3.5% | +/- 5.0% |
| Straightness in side | IS-13630-1 | 0.1% | +/- 0.1% |
| Rectangularity | IS-13630-1 | 0.1% | +/- 0.1% |
| Surface Flatness | IS-13630-1 | 0.2% | +/- 0.5% |
| Surface Quality | IS-13630-1 | 95% | 95 % Free From Visible Defect |
| PHYSICAL & THERMAL PROPERTIES | |||
| Water Absorption | <0.05% | 0.05% | IS-13630-2 |
| Modules of Rapture | 35 N/MM^3 | 38 N/MM2 | IS-13630-6 |
| Flexural Breaking Strength | >1300N | >1500 N | IS-13630-6 |
| Moisture Expansion | 0.02% | Nil | IS-13630-3 |
| Scratch Hardness (MOH’s) | Min-5 | 3.-4* | IS-13630-13 |
| Resistance of Surface Abrasion | Max. 140 Mm^3 | 120 MM3 | IS-13630-11 |
| Thermal Expansion | 6 x 10^-6 k^-1 | 6 x 10^-6 k^-1 | IS-13630-4 |
| Thermal shock Resistance | Min 10 Cycle | 10 Cycle Passed | IS-13630-5 |
| Frost Resistance | No Damage | No Damage | IS-13630-10 |
| Bulk Density | > 2.2 gm/cc | 2.3 gm/cc | IS-13630-2 |
| Glossiness | As per Mfg. Norms | >85% | Glossmeter |
| Impact Resistance | 0.55 MIN | 0.30 MIN | IS-13630-14 |
| CHEMICAL PROPERTIES | |||
| Resistance of Staining | Class Min | Class Min | IS-13630-8 |
| Household Chemicals | Class AA Min | Class AA Min | IS-13630-8 |
| Acid Resistance | Resistance | Resistance |
IS-13630-8 |
